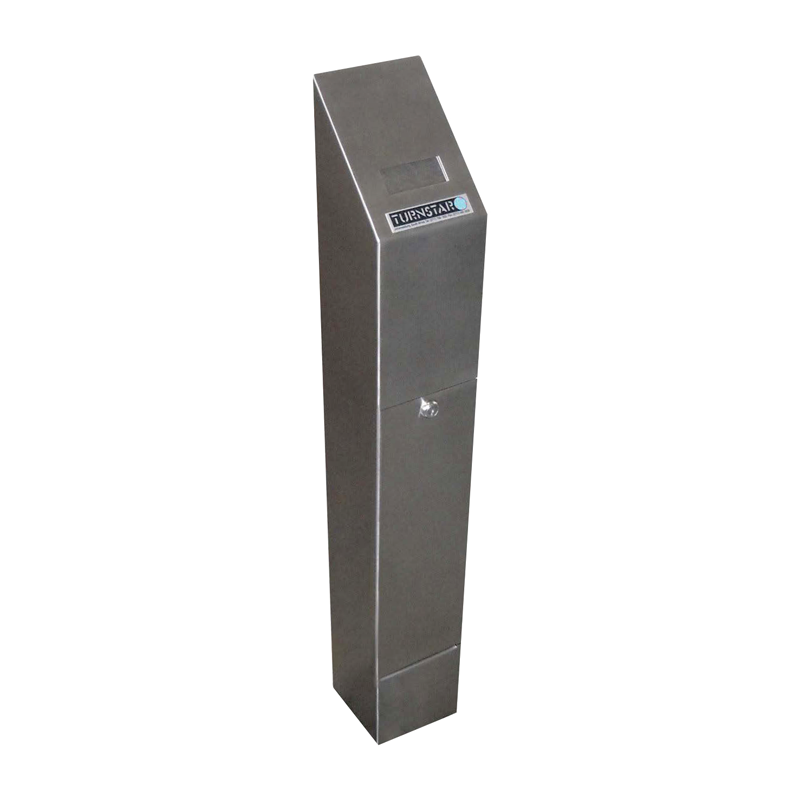

CARD DROP BOX

ERSBio-Card-Drop-Box

Suited for applications requiring high speed and reliable visitor management, the Card Drop Box is used extensively with turnstiles, man-trap cubicles, express gates and vehicle barriers.

• Internal and external (with optional raincover) installations
• Can be integrated with any turnstile, vehicle barrier or physical access control product
• Optical sensor to detect the falling card
• Card obstruction detection in the drop box chute
• Floor mount or full height turnstile side mount design
• Rotating flap with pivot design

Material:

430 grade stainless steel (Mechanism and Chute)
Cabinet available in either of the following options:
– Mild steel with UV resistant polyester exterior powder coat finish – internal use only (white)
– 3Cr12 with UV resistant polyester exterior powder coat finish (white)
– 304 grade brushed stainless steel
– 316 grade brushed stainless steel
– Other colours are available on request

SPECIFICATIONS
Connection
220V AC (110V AC on request)
Operating Voltage
24V
Card Size
Cards up to 60mm wide, cards with clip
Dimensions
Floor mounting design: 140mm x 140mm x 950mm high ; Full height turnstile side mount design: 140mm x 140mm x 740mm high
