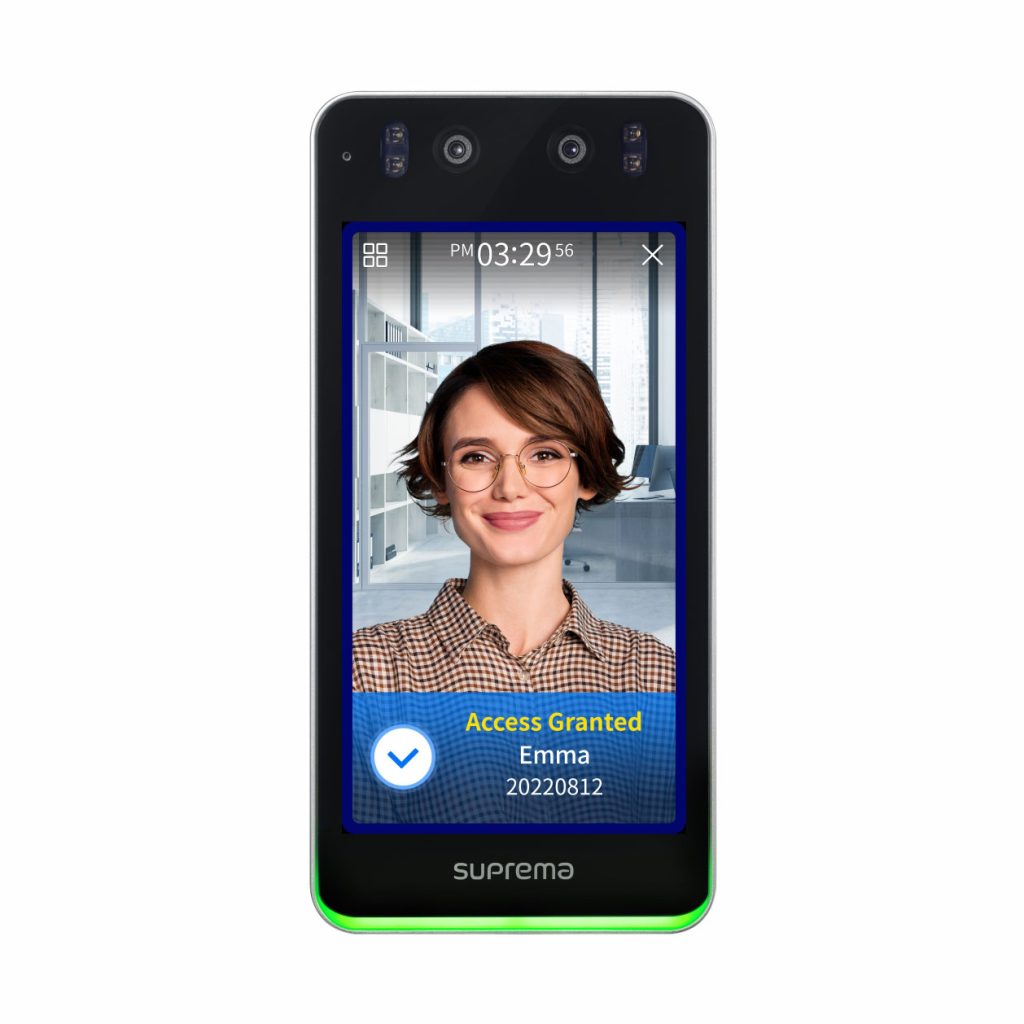

EBSF850
TIME & ATTENDANCE AND ACCESS CONTROL
FOR INTERNAL & EXTERNAL USE
Easy to install, from small offices to massive enterprise buildings. The slim, compact design of the EBSF850 device is suitable for both indoor and outdoor environments, thanks to its robust IP65 and IK06 ratings.
• Accurately and rapidly recognize moving faces in high-traffic areas
• Anti-spoofing via IR-Based Live Face Detection
• Use dynamic face templates to increase matching performance with faces wearing masks, glasses, hats, beards, different hairstyles, etc.
• Data encryption
• Less wiring and quick installation through Wi-Fi and POE+ support
| SPECIFICATIONS | |
|---|---|
RF Options | 125kHz EM & 13.56MHz MIFARE,
MIFARE Plus, DESFire, DESFire EV1/
EV2/EV3(1), FeliCa |
CPU | 1.5GHz Quad Core |
Memory | 32GB Flash + 4GB RAM |
Crypto Chip | Supported |
LCD | 5.5" IPS color LCD, 720 x 1280 pixels |
Sound | 16 bit |
Operating Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
Operating Humidity | 0% ~ 80%, non-condensing |
Camera | 2MP x 2EA (Visual, IR) |
Dimensions | 82.5 x 171 x 23.4 |
Weight | 370g |
Ingress Protection & Vandal Proof | IP65, IK06 |
Certificates | KC, CE, UKCA, FCC, RCM (Compliance: RoHS, REACH, WEEE) |
Capacity | Max. User 100,000(4)
l Max. Credential (1:N) Face: 50,000
l Max. Credential (1:1) Face: 100,000 / Card: 100,000 / PIN: 100,000
l Max. Text Log 5,000,000
l Max. Image Log 50,000 |
Ethernet | 10/100/1000 Mbps, auto MDI/MDI-X |
Rs485 | 1ch Host or Slave (Selectable |
Wiegand | 1ch Input and 1ch Output |
TTL Input | 3ch Inputs |
Relay | 1 Relay |
Intercom | Supported |
Power | DC 12V 2.5A, DC 24V 1.2A |
