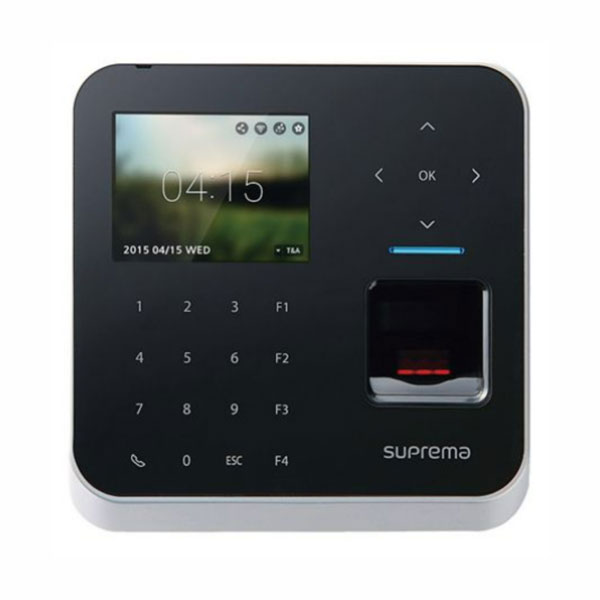

EBS840
TIME & ATTENDANCE AND ACCESS CONTROL
FOR INTERNAL & EXTERNAL USE
The EBS840 device utilises the next generation of optical sensor for improved fingerprint sensing to offer unrivaled performance and is designed to provide matching & authentication in an instant.
Its IP65 protection allows it to be placed in both indoor and outdoor environments.
• Improved matching algorithm, memory handling and powerful processor
• Ideal for harsh environment and outdoor installation
• Built-in WiFi and Power-over-Ethernet functionality for wide range of installation options
| SPECIFICATIONS | |
|---|---|
RF Options | 125 KHz EM |
Sensor Type | Optical Sensor (OP5) |
Extractor / Matcher | MINEX certified and compliant |
CPU | 1.0 GHz Single Core |
Memory | 8GB Flash + 256MB RAM |
Template Count | Max User: 500,000 (1:1), 20,000(1:N) l Max Template: 1,000,000(1:1), 40,000(1:N)
l Max Logs: 3,000,000(text) |
LED | Multi-Color |
Sound | 16-bit Hi-Fi |
Ethernet | Supported (10/100 Mbps, auto MDIX) |
RS485 & Wiegand | RS485: 1ch Host or Slave (Selectable), OSDP V2.1.6 l Wiegand: 1ch Input, 1ch Output |
TTL | 2ch Inputs, 2ch Outputs |
Relay | 1 Relay |
PoE | Supported (IEEE 802.3af compliant) |
Power | Voltage: DC 12V Current: Max. 1A |
Operating Temperature | -20°C ~ 50°C |
Operating Humidity | 0% ~ 80%, non-condensing |
Dimensions (WxHxD) | 142 x 145 x 45 mm |
Weight | 440g |
Ingress Protection | IP65 |
Certificates | CE, FCC, RoHS, REACH, WEEE, FBI PIV (BLN2-PAB sensor only) |
